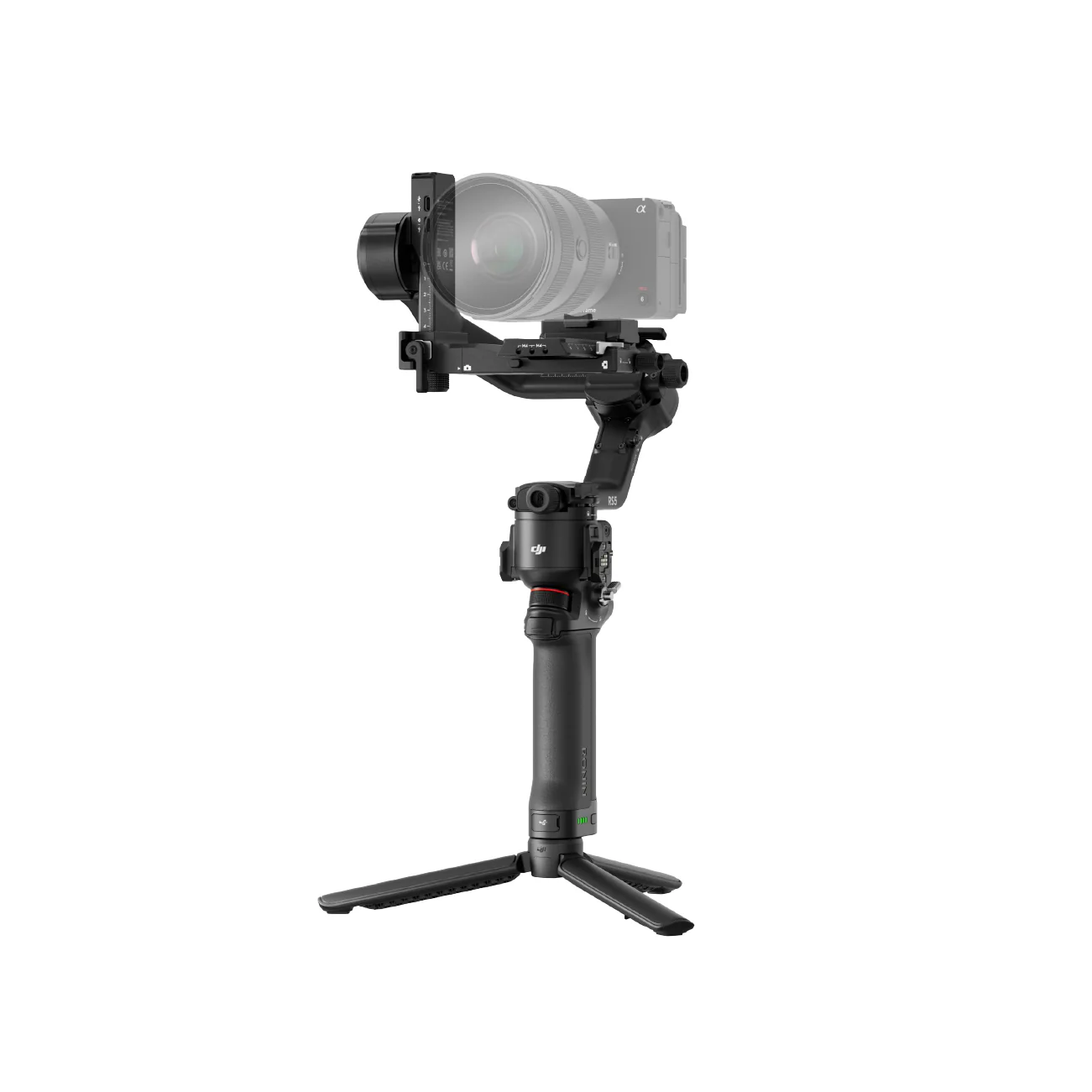

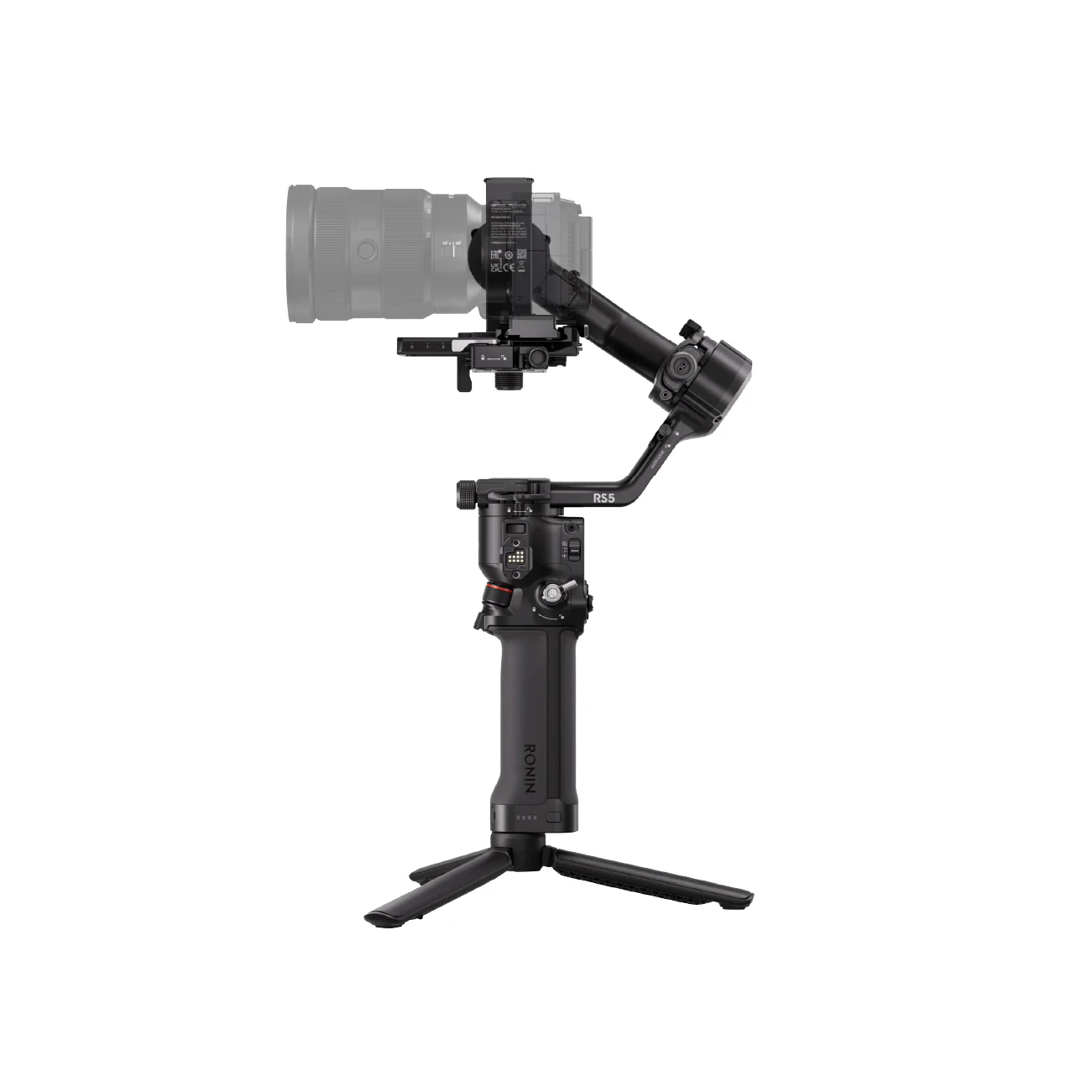

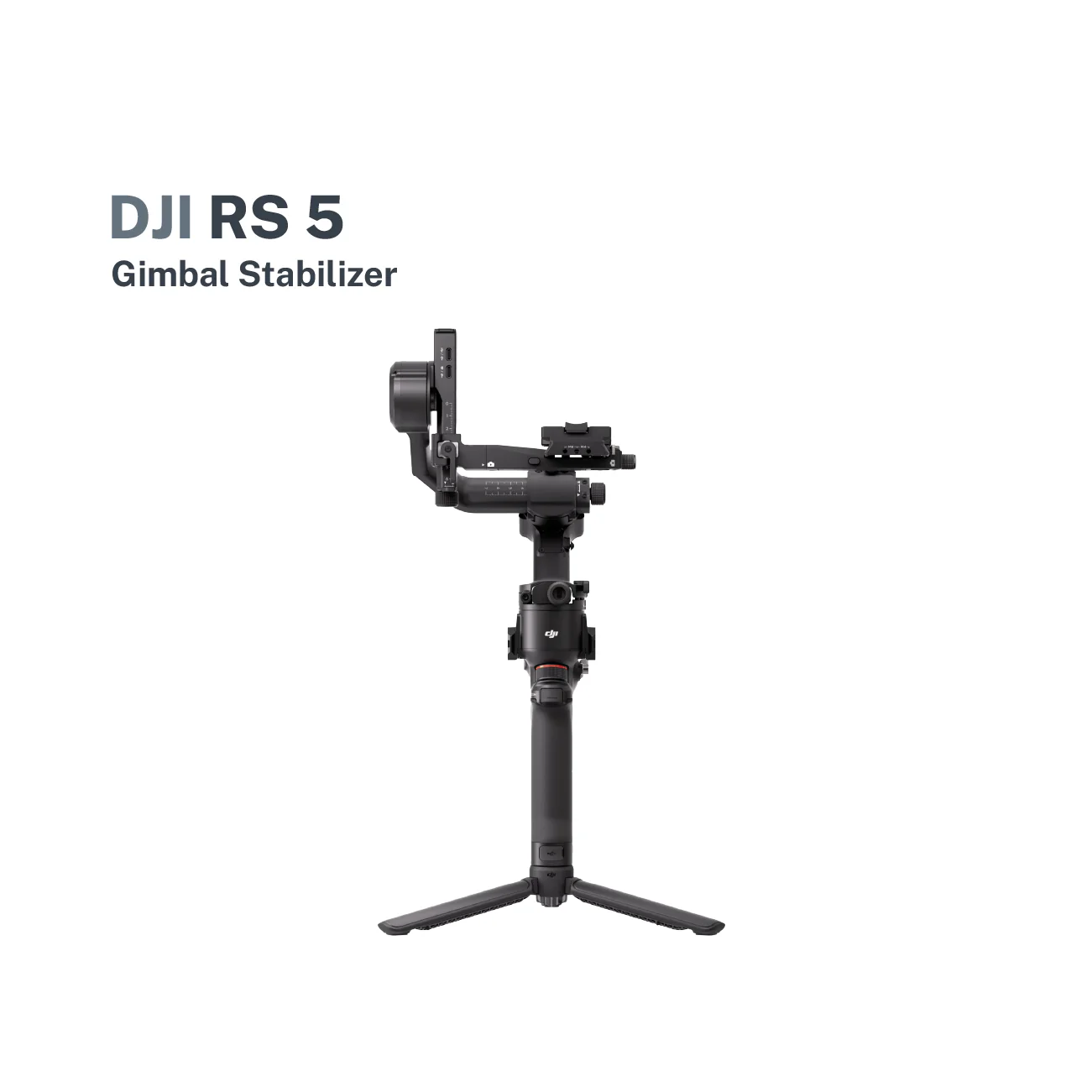

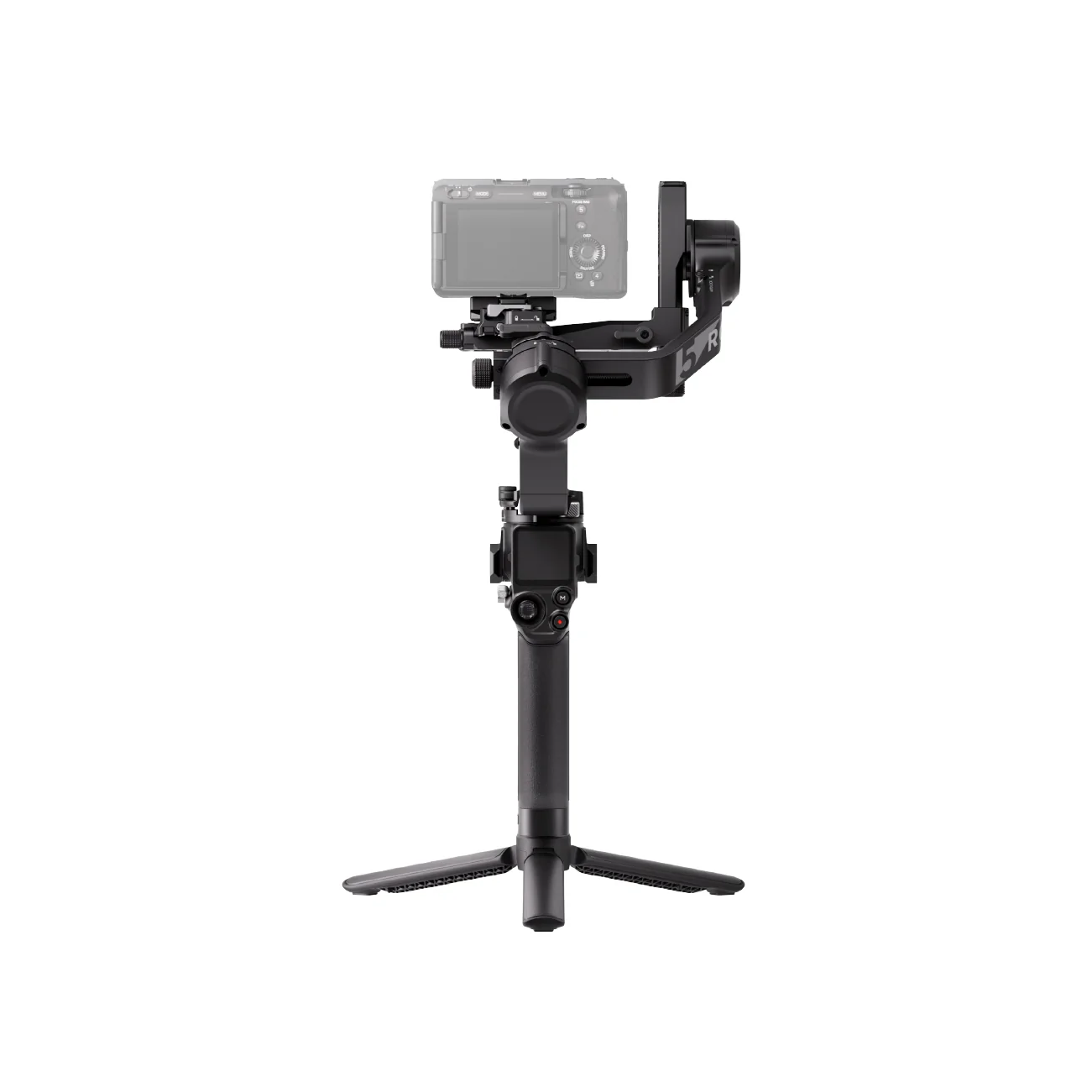

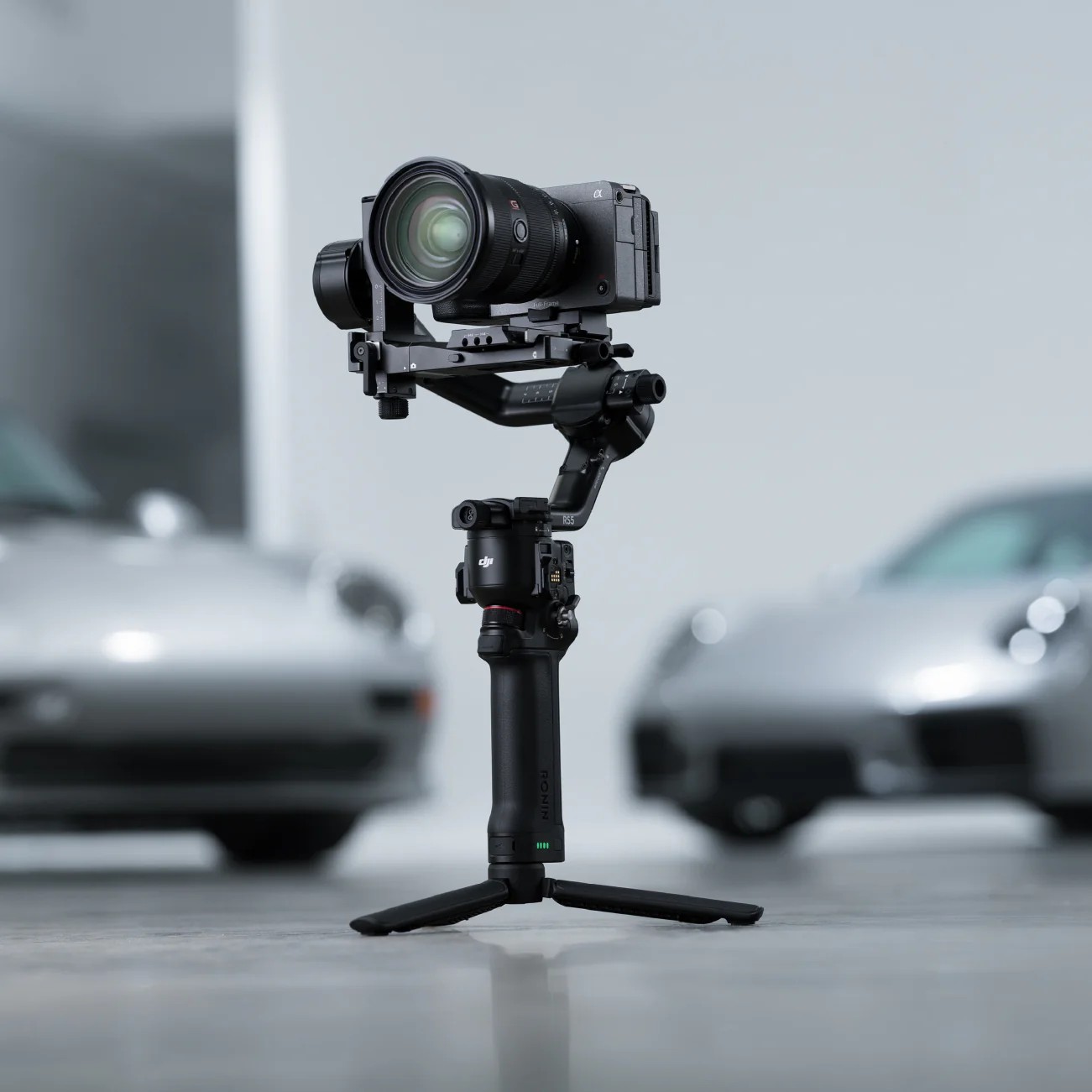

Get even smoother video footage, complete with a Z-axis (vertical) indicator, using the RS 5 Gimbal Stabilizer from DJI. This powerful yet lightweight gimbal features full charging in just one hour, a 15% increase in runtime, Teflon-enhanced balancing, and fine-tuning knobs. An electronic control handle and advanced AI framing and tracking modules are available separately.
- Lightweight 3.2 lb Body, 6.6 lb Payload
- Z-Axis Indicator
- One-Hour Full Charge with 65W PD Charger

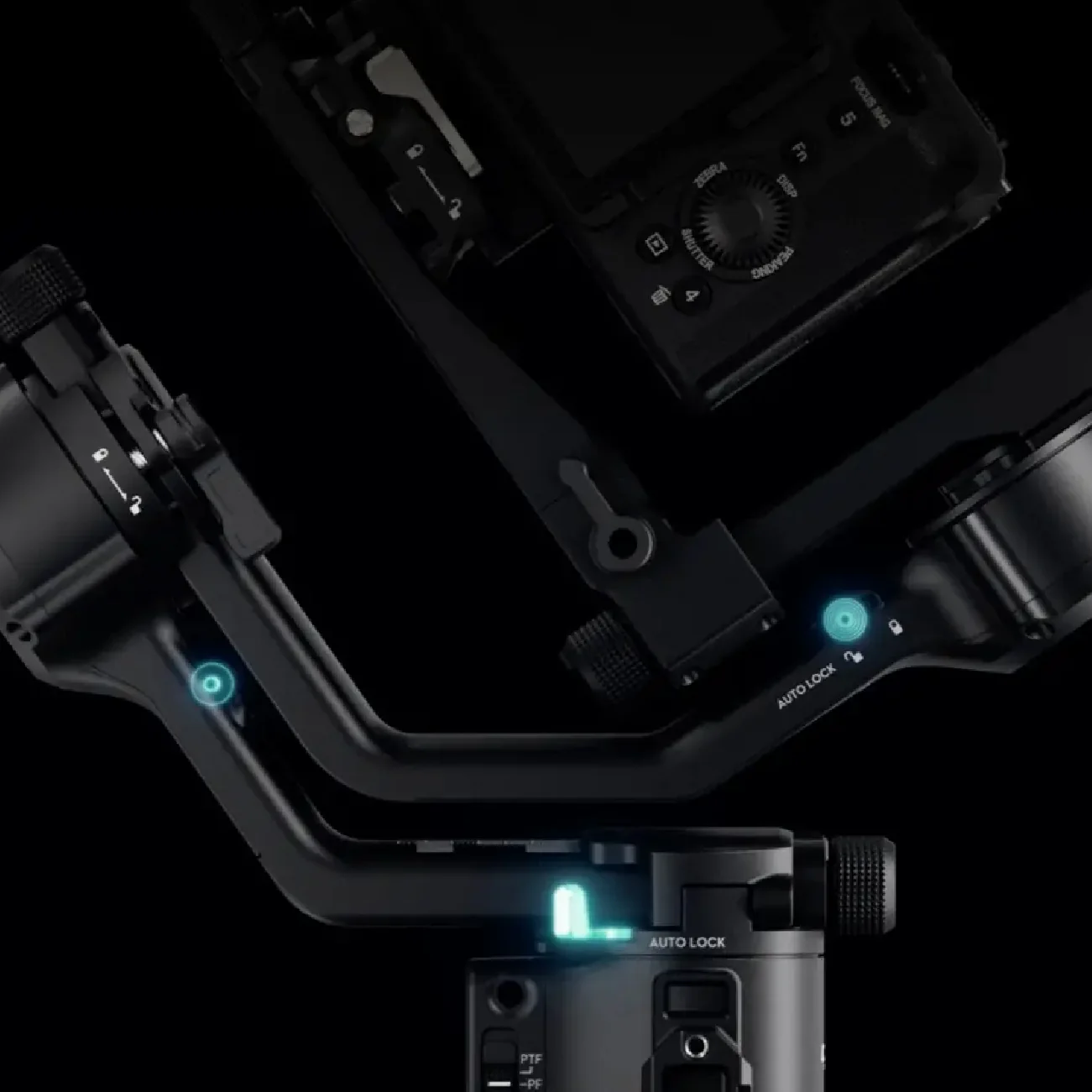

- 2nd Gen Automated Axis Locks
- Separate AI Tracking and Framing Module

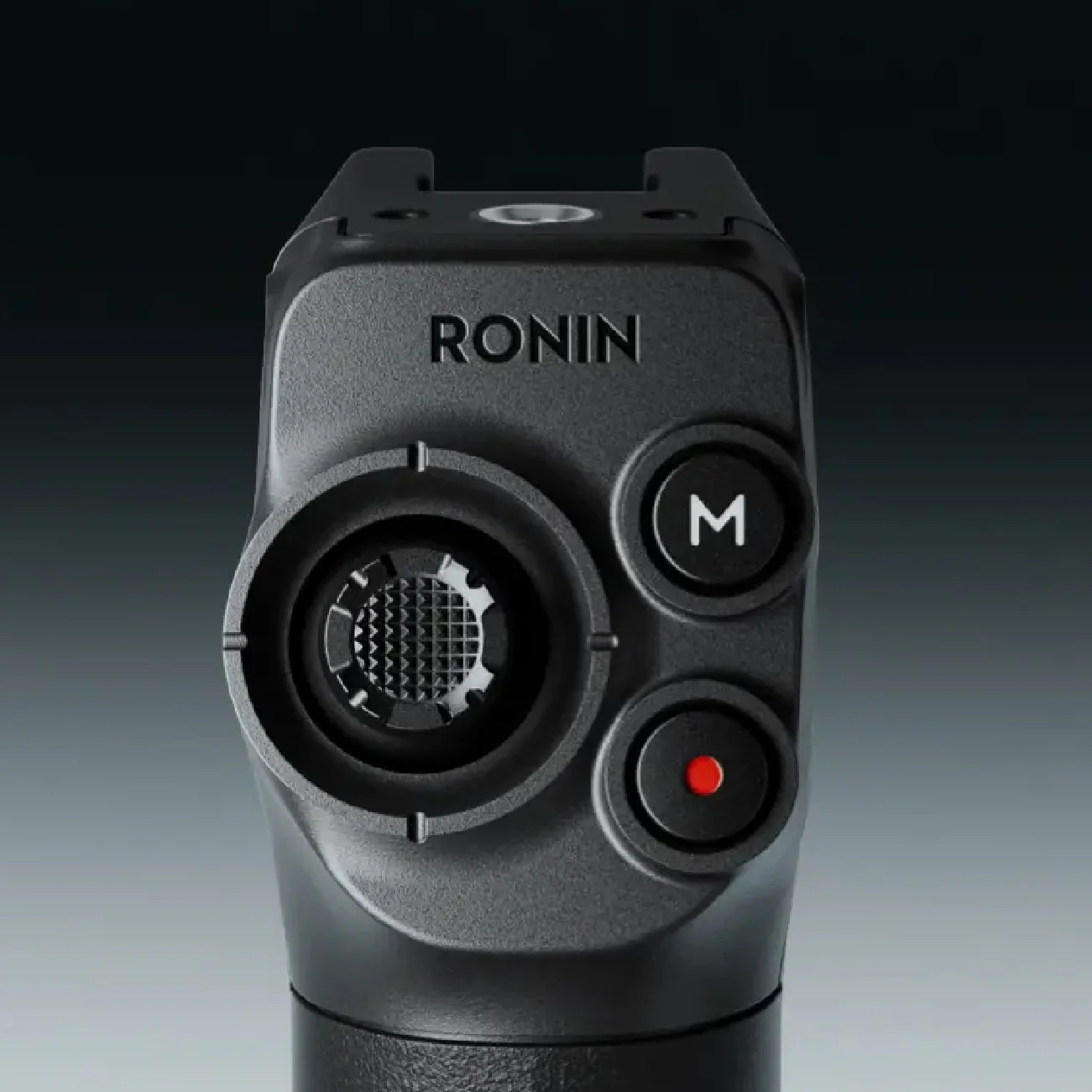

- Separate Electronic Control Handle

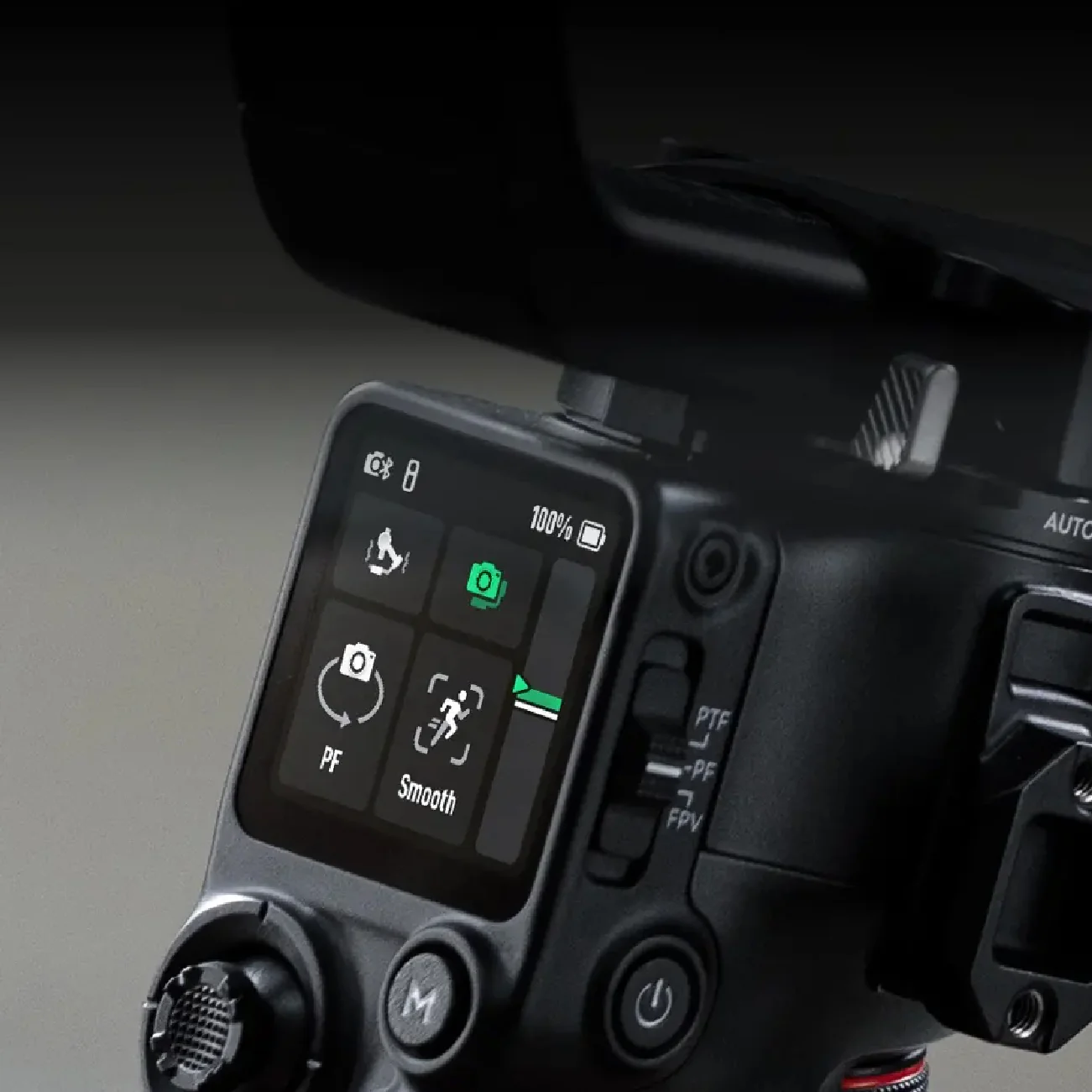

- OLED Touchscreen with Auto-Lock
- 3rd Gen Native Vertical Shooting
- Joystick or Bluetooth Mode Switching
- Teflon-Coated Axes, Enhanced Balancing
Product Specifications:
Gimbal
| Load Capacity |
6.6 lb / 3 kg
|
| Number of Axes |
Three: Pitch (Tilt) / Roll / Yaw (Pan)
|
| Rotation Range |
Mechanical Range
Yaw (Pan): 360°
Roll: 335° (-95 to 240°)
Pitch (Tilt): 326° (-112 to 214°)
|
| Follow Speed |
Pan/Tilt/Roll: 360°/s
|
| Counterweight |
Available, Not Included
|
| Joystick Controller |
No
|
Compatibility
| Camera Control |
On Compatible Models
|
| Camera Compatibility |
Universal
|
| Camera Mounting Screw |
1x 1/4"-20 Male
|
Connectivity
| Inputs/Outputs |
1x USB-C (Power)
|
| Wireless |
2.4 GHz Radio/RF / Bluetooth 5.1
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: Ronin App
|
Battery
| Battery Type |
Built-In
|

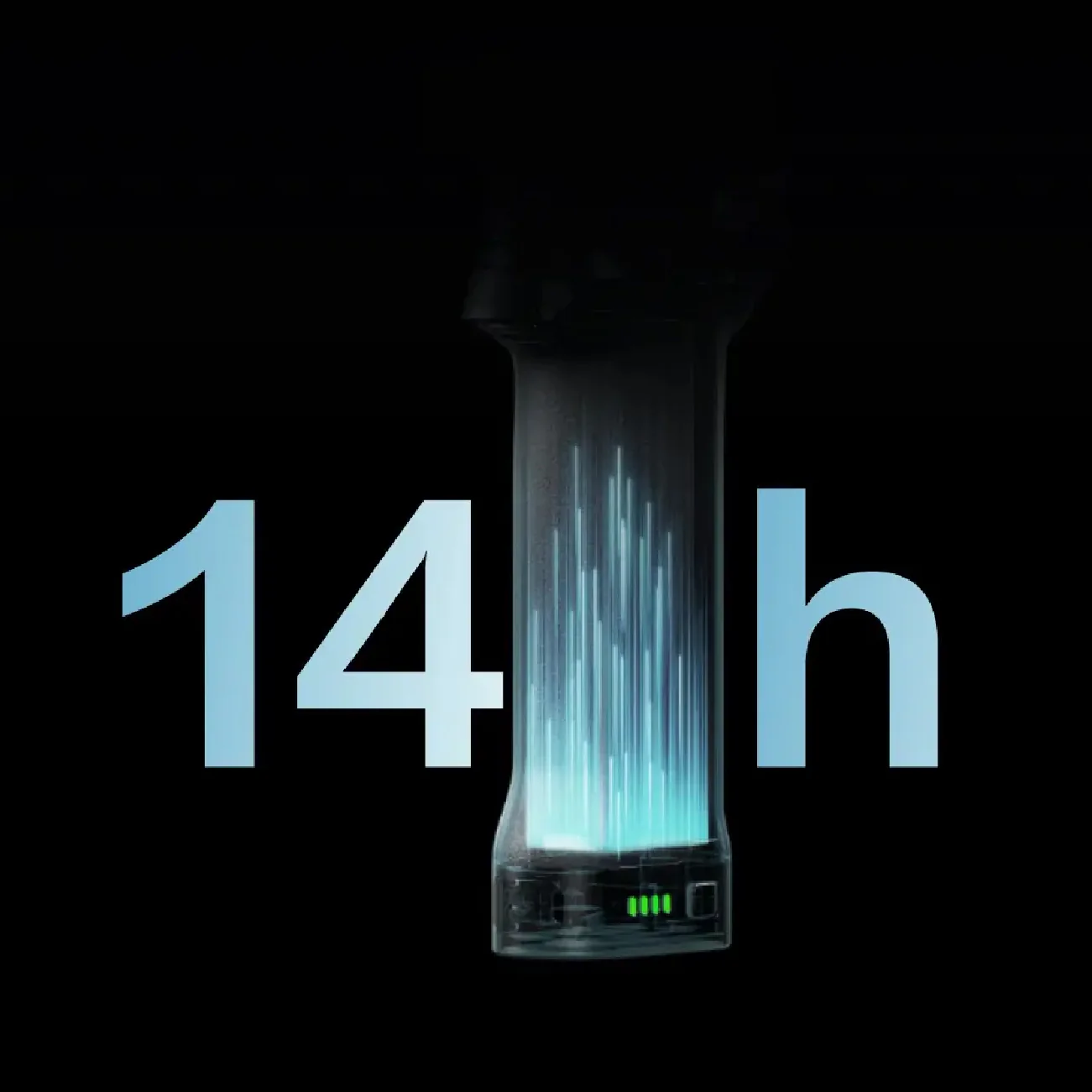

| Battery Runtime |
14 Hours
|
| Battery Charging Time |
1 Hours
|
Power
| Operating Voltage |
7.2 VDC
|
General
| Display Type |
Fixed Touchscreen OLED
|
| Operating Conditions |
-4 to 113°F / -20 to 45°C
|
| Materials |
Aluminum Alloy
|
| Accessory Mounting |
1 x 1/4"-20 Female
2 x NATO Rail
|
| Dimensions |
16.5 x 8.8 x 7.6" / 418.8 x 223.2 x 192.2 mm
10.2 x 9.7 x 4.6" / 258.7 x 247.4 x 115.7 mm (Folded)
|
| Weight |
2.630 lb / 1.193 kg
|
Transmitter
| Transmitter I/O |
2 x NATO
2 x USB-C
|
| Transmission System |
Bluetooth 5.1
2.4 GHz
|
Packaging Info
| Package Weight |
4.59 lb
|
| Box Dimensions (LxWxH) |
11.7 x 10.2 x 3.7"
|
